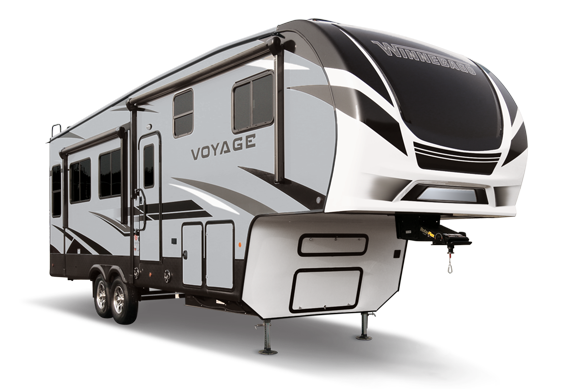

Voyage Fifth Wheel Exterior With W Series Foundation Frame




The best journeys are those not taken alone. And with the Voyage Fifth Wheel – built on the strength of the W Series Foundation – you won’t. You’ll have Winnebago’s legendary service, engineering ingenuity, and product expertise riding shotgun on every mile. Paired with the fifth-wheel’s benchmark comfort and connectivity, the greatest voyages are yet to come.

Starting At: $52,545


32' Length
3 Sleeps9
35'6" Length
3 Sleeps9
39' Length
8 Sleeps9
39'6" Length
6 Sleeps9


W Series Foundation

W Series Foundation

With the W Series Foundation, each of the four available floorplans are built right from the same source, guaranteeing a single point of service to simplify your life.

Winnebago Voyage Travel Trailer open exterior storage compartment

Smart Storage

With a drop frame design and walk-in pantries, you’ll find storage around every corner.

Voyage Fifth Wheel V3134RL Galley Space Featuring Residential Kitchen Appliances

Long Trip Comfort

Extended stay features, like the washer/dryer prep, 12 cu. ft. refrigerator, and king bed in most floorplans, help make the Voyage Fifth Wheel a true home away from home.

Winnebago Voyage Fifth Wheel universal docking station

Universal Docking Station

Enclosed universal docking station for easy hookups to cords and connections.


V2932RLNew V3134RLNew V3639BHLNew V3436FLNew
Exterior Length 32' 35'6" 39' 39'6"
Exterior Height1 13'2" 13'2" 13'2" 13'2"
Exterior Width2 8' 8' 8' 8'
Exterior Storage3 (cu. ft.) --- --- --- ---
Awning Length 13'/10' 16'/10' 20' 16'
Interior Height 8'4" 8'4" 8'4" 8'4"
Interior Width --- --- --- ---
Freshwater Tank Capacity4 (gal.) 60 60 60 60
Water Heater Capacity (gal.) 10 10 10 10
Holding Tank Capacity4 — Black (gal.) 50 50 100 50
Holding Tank Capacity4 — Gray (gal.) 50 100 100 100
LP Capacity5 (lbs.) 60 60 60 60
Fuel Capacity (gal.) --- --- --- ---
GCWR6 (lbs.) --- --- --- ---
GVWR (lbs.) 16,000 16,000 16,000 16,000
GAWR - Front (lbs.) --- --- --- ---
GAWR - Rear (lbs.) --- --- --- ---
Wheelbase --- --- --- ---
Cassette Toilet Capacity4 (gal.) --- --- --- ---
Sleeps9 3 3 8 6
Axles (lbs.) [email protected],000 [email protected],000 [email protected],000 [email protected],000
Dry Weight (lbs.) 10,168 11,030 TBD 11,862
Furnace (BTU) 30,000 30,000 30,000 30,000
Garage Length --- --- --- ---
Hitch Weight (lbs.) 2,118 2,488 TBD 2,820
Slideouts --- --- --- ---
Tire Size 235/80R16G 235/80R16G 235/80R16G 235/80R16G

Ceiling LED Lighting
Maximum Lino throughout (only carpet in flush floor slide)
Solid style interior tread steps
Tri-fold Hide-a-bed sofa
Theater Seats (non-power) (V3032RK, V3134RL, V2932RL, V3436FL only)
DVD/CD/AM/FM Dual Zone Ent. system with HDMI & Bluetooth
Booth dinette (V3032RK, V3639BHL only)
USB charge ports
Framed/tinted radius safety glass windows
Pass thru storage area
Lino pass through
Battery shut off switch
Universal enclosed docking station

Optional Equipment:

Dining table & 4 chairs--2 fixed 2 folding (mandatory V3134RL, V2932RL, V3436FL)
Dual pane windows
Bunk room TV (V3639BHL only)

Hardwood cabinet doors and drawer fronts
Solid Core cabinet stiles
Ball bearing full extension drawer guides
Single bowl undermount galley sink
stainless steel recessed 3 burner cooktop with glass cover and stove
Stainless steel 30" convection microwave
8 cu. ft. gas/electric RV refer w/ pantry
High rise pull out faucet
Power vent
Solid surface galley countertops

Optional Equipment:

12 cu. ft. refrigerator

2 piece shower with glass door
Large skylight over shower
Residential bath fixtures
Heat & A/C ducts in bathroom
Large medicine cabinet with mirror
Bathroom power vent/fan
Porcelain toilet with foot pedal flush
Extra large lav top with stainless steel sink

60x80 Queen Bed
Under-bed storage
Outlet and USB each side of bed

Optional Equipment:

King bed (N/A V2932RL, V3639BHL)
32" bedroom TV

MorRyde solid quad entry step
7,000 lb. axles
16" 6-Lug tires with aluminum rims and leaf spring suspension
Rubberized equalizers
Nev-R-Adjust brakes
Extended pin box
Rear view camera prep
LED clearance/stop/turn/tail and back-up lights
2" receiver
Spare tire
Gel coat fiberglass front cap w/ integrated LED lighting
Fiberglass and Radiant foil roof and front cap insulation
30" x 72" radius entry door w/ glass (main)
Outside speakers
Factory installed roof ladder
1 1/2" fresh water drain valve
Exterior fiberglass sidewalls w/ Azdel
4 1/2" roof truss 16" on center
Walk on roof decking
One-piece TPO roof membrane
Large fold away entry grab handle
Electric awning with LED light
Power stabilizing jacks
Exterior shower
Heated and enclosed underbelly with thermo foil insulation

Optional Equipment:

Secondary awning (V2932RL, V3134RL only)
Rota-Flex pin box

True Trax A/C ducting system
30,000 BTU furnace
26" 5,000 BTU fireplace
Fiberglass and Radiant foil roof and front cap insulation

Optional Equipment:

13.5K BTU 2nd A/C -bedroom mount

55 amp/12V DC converter
50 amp electrical service
36' power cord w/ LED light
Roof mounted solar prep
Antenna w/ wifi prep
Satellite and antenna connections

Optional Equipment:

Electric 6 point Level Up (mandatory option)

Dual 30# LP bottles
Exterior LP quick connect
10 gallon water heater
City water hook up with high pressure tank fill
Black tank flush
Winterization valve

  1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit.  The actual height of our vehicle may vary by several inches depending on chassis or equipment variations.  Please contact your dealer for further information.
  2. Not applicable to this model
  3. Not applicable to this model
  4. Capacities are based on measurements prior to tank installation.  Slight capacity variations can result due to installation applications.
  5. Not applicable on this model
  6. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR and GCWR, as well as adequate trailer brakes.  Please refer to the Operator’s Manual of your vehicle for further towing information.
  7. Not applicable to this model
  8. See your dealer for complete warranty information.
  9. Sleeping capacity is the maximum based on a specific floorplan.

Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle.

In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.

**Base Manufacturers Suggested Retail Price shown. Base price does not include tax, title, license, delivery charges or optional features. Prices are subject to change without notice.
