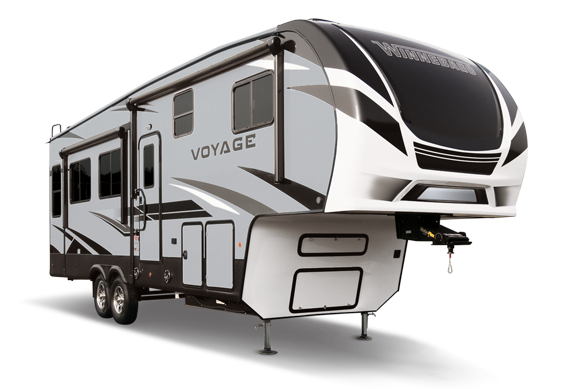

Winnebago Voyage Fifth Wheel Featuring Brilliant Silver Exterior and W Series Foundation Frame

Voyage

Logo

Voyage

The best journeys are those not taken alone. And with the Voyage Fifth Wheel – built on the strength of the W Series Foundation – you won’t. You’ll have Winnebago’s legendary service, engineering ingenuity, and product expertise riding shotgun on every mile. Paired with the fifth-wheel’s benchmark comfort and connectivity, the greatest voyages are yet to come.

Starting At: $53,165
Winnebago Voyage Fifth Wheel Featuring Brilliant Silver Exterior and Painted Cap

Floorplans

29'6" Length
4 Sleeps9
32'5" Length
3 Sleeps9
35'6" Length
3 Sleeps9
39'6" Length
6 Sleeps9
39'6" Length
4 Sleeps9
39' Length
8 Sleeps9

Features

W Series Foundation

W Series Foundation

With the W Series Foundation, each of the four available floorplans are built right from the same source, guaranteeing a single point of service to simplify your life.

Winnebago Voyage Travel Trailer open exterior storage compartment

Smart Storage

With a drop frame design and walk-in pantries, you’ll find storage around every corner.

Voyage Fifth Wheel V3134RL Galley Space Featuring Residential Kitchen Appliances

Long Trip Comfort

Extended stay features, like the washer/dryer prep, 12 cu. ft. refrigerator, and king bed in most floorplans, help make the Voyage Fifth Wheel a true home away from home.

Winnebago Voyage Fifth Wheel universal docking station

Universal Docking Station

Enclosed universal docking station for easy hookups to cords and connections.

Specifications

V2830RKNew V2932RLNew V3134RLNew V3436FLNew V3739RKNew V3639BHLNew
Exterior Length 29'6" 32'5" 35'6" 39'6" 39'6" 39'
Exterior Height1 13'2" 13'2" 13'2" 13'2" 13'2" 13'2"
Exterior Width2 8' 8' 8' 8' 8' 8'
Exterior Storage3 (cu. ft.) --- --- --- --- --- ---
Awning Length TBD 13'/10' 16'/10' 16' 20' 20'
Interior Height 8'4" 8'4" 8'4" 8'4" 8'4" 8'4"
Interior Width --- --- --- --- --- ---
Freshwater Tank Capacity4 (gal.) TBD 60 60 60 60 60
Water Heater Capacity (gal.) 10 10 10 10 10 10
Holding Tank Capacity4 — Black (gal.) TBD 50 50 50 50 100
Holding Tank Capacity4 — Gray (gal.) TBD 50 100 100 100 100
LP Capacity5 (lbs.) 60 60 60 60 60 60
Fuel Capacity (gal.) --- --- --- --- --- ---
GCWR6 (lbs.) --- --- --- --- --- ---
GVWR (lbs.) 14,000 16,000 16,000 16,000 16,000 16,000
GAWR - Front (lbs.) --- --- --- --- --- ---
GAWR - Rear (lbs.) --- --- --- --- --- ---
Wheelbase --- --- --- --- --- ---
Cassette Toilet Capacity4 (gal.) --- --- --- --- --- ---
Sleeps9 4 3 3 6 4 8
Axles (lbs.) [email protected],000 [email protected],000 [email protected],000 [email protected],000 [email protected],000 [email protected],000
Dry Weight (lbs.) TBD 10,168 11,030 11,862 TBD TBD
Furnace (BTU) 30,000 30,000 30,000 30,000 30,000 30,000
Garage Length --- --- --- --- --- ---
Hitch Weight (lbs.) TBD 2,118 2,488 2,820 TBD TBD
Slideouts --- --- --- --- --- ---
Tire Size 235/80R16G 235/80R16G 235/80R16G 235/80R16G 235/80R16G 235/80R16G

Ceiling LED Lighting
Maximum Lino throughout
Solid style interior tread steps
Tri-fold sofa
Theater Seats (V3134RL, V2932RL, V3436FL, 2830RK only)
LED TV
DVD/CD/AM/FM Dual Zone Ent. system with HDMI & Bluetooth
USB charge ports
Framed/tinted radius safety glass windows
Pass thru storage area (drop frame)
Lino pass through
Battery disconnect switch
Universal enclosed docking station
Ductless flooring in main deck
Antenna w/ WiFi prep



Optional Equipment:

Dining table & 4 chairs--2 fixed 2 folding (mandatory V3134RL, V2932RL, V3436FL)(N/A V3739RK, V2830RK)
Dual pane windows
32" Bunk room TV (V3639BHL only)
Booth dinette (V3639BHL only)

Residential panel cabinet doors and drawer fronts
Solid Core cabinet stiles
Ball bearing full extension drawer guides
Single bowl undermount galley sink
Recessed 3 burner cooktop w/ backlit knobs, glass cover & oven
30" convection microwave
10.3 cu. ft. 12V gas/electric RV refer w/ pantry
High rise pull out faucet
Power vent
Solid surface galley counter tops



Optional Equipment:

12 cu. ft. refrigerator

2 piece shower with glass door
Large skylight over shower
Residential bath fixtures
Heat & A/C ducts in bathroom
Large medicine cabinet with mirror
Bathroom power vent/fan
Porcelain toilet
Extra large lav top with stainless steel sink

60" x 80" Queen bed w/ under-bed storage
Outlet and USB each side of bed



Optional Equipment:

King bed (N/A V2932RL, V3639BHL)
32" bedroom TV

Solid quad entry step
7,000 lb. axles (6,000 V2830RK)
16" 6-Lug tires with aluminum rims and leaf spring suspension (15" V2830RK)
Rubberized equalizers
Nev-R-Adjust brakes
Extended pin box
Rear view camera prep
LED clearance/stop/turn/tail and back-up lights
2" accessory hitch
Spare tire
Gel coat fiberglass front cap w/ integrated LED lighting
Fiberglass and Radiant foil roof and front cap insulation
30" x 72" radius entry door w/ glass (main)
Outside speakers
Exterior ladder
1 1/2" fresh water drain valve
Exterior fiberglass sidewalls w/ Azdel
4 1/2" roof truss 16" on center
Walk on roof decking
One-piece TPO roof membrane
Large fold away entry grab handle
Electric awning with LED lighting
Power stabilizing jacks
Exterior shower

Optional Equipment:
Secondary awning (V3134RL, V2932RL, V3739RK only)
Rota-Flex pin box

True Trax A/C ducting system
15K BTU A/C
30,000 BTU furnace
Fireplace
Fiberglass and Radiant foil roof and front cap insulation
Heated and enclosed underbelly with thermo foil insulation




Optional Equipment:

13.5K BTU 2nd A/C -bedroom mount

55 amp/12V DC converter
50 amp electrical service
36' power cord w/ LED light
Roof mount solar charger prep
Antenna w/ wifi prep
Satellite and antenna connections



Optional Equipment:

Electric 6 point Level Up (Mandatory V3134RL, V3436FL, V3639BHL, V3739RK)
Electric 4 point Level Up (Mandatory V2932RL, V2830RK)

Dual 30# LP bottles
Exterior LP quick connect
10 gallon water heater
City water hook up with high pressure tank fill
Black tank flush
Winterization valve

  1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit.  The actual height of our vehicle may vary by several inches depending on chassis or equipment variations.  Please contact your dealer for further information.
  2. Not applicable to this model
  3. Not applicable to this model
  4. Capacities are based on measurements prior to tank installation.  Slight capacity variations can result due to installation applications.
  5. Not applicable on this model
  6. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR and GCWR, as well as adequate trailer brakes.  Please refer to the Operator’s Manual of your vehicle for further towing information.
  7. Not applicable to this model
  8. See your dealer for complete warranty information.
  9. Sleeping capacity is the maximum based on a specific floorplan.

Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle.

In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.

**Base Manufacturers Suggested Retail Price shown. Base price does not include tax, title, license, delivery charges or optional features. Prices are subject to change without notice.
